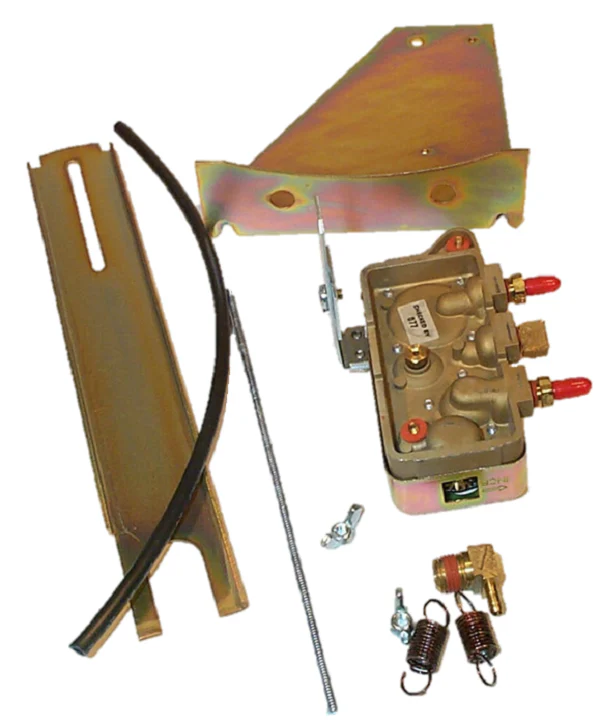

Siemens Building Technology 599-00423 Relay Mounting Kit

Relay Mounting Kit for Flowrite 12" Actuator

Siemens 599-00423 Relay Mounting Kit for Flowrite 12" Actuator – Compatible with 1/2", 3/4", 1" Valve Sizes

Upgrade your HVAC control systems with the Siemens Building Technology 599-00423 Relay Mounting Kit, engineered for reliable and efficient mounting of Flowrite 12" actuators. This high-performance mounting kit is designed to support valve sizes of 1/2", 3/4", and 1", ensuring flexible compatibility for a wide range of installations.

Key Features and Specifications:

• Valve Compatibility: 1/2", 3/4", 1"

• Cv Range: 1, 2.5, 4, 4.1, 7

• Stroke: 0.1" (2.5 mm)

• Valve Body Pattern: 2-way and 3-way diverting

• Flow Characteristic: Linear

• Leakage Rating: ANSI Class III (≤0.1% of rated capacity)

• Body Rating: ANSI Class 125

• Media Temperature Range: 34°F to 230°F (1°C to 110°C)

• Supply Voltage Options: 24 VAC ±20%, 120 VAC ±20%, 50/60 Hz

• Input Signal Types: Two-position, three-position (floating), and 0-10 VDC proportional

• Actuator Stroke Times:

  • Two-position: 35 seconds

  • Floating: 150 seconds

  • Proportional: 34 seconds

• Operating Temperature: 41°F to 122°F (5°C to 50°C)

• Humidity Range: 0 to 90% RH (non-condensing)

• Enclosure Rating: NEMA 1 (indoor use only)

• Weight:

  • Two-position: 1.2 lb (0.54 kg)

  • Floating & Proportional: 0.5 lb (0.25 kg)

• Certifications: CE, EMC Directive 89/336/EEC, Low Voltage Directive 73/23/EEC, UL File #E220114

• Warranty: 2-Year Manufacturer Warranty

Additional Benefits:

• Direct-coupled universal bonnet for secure installation

• Tool-free mounting for ease and speed

• Manual override feature with 3mm hex wrench

• Visual position indicator for quick operational feedback

The Siemens 599-00423 is the ideal choice for professionals seeking reliable and easy-to-install relay mounting solutions for Flowrite actuators in commercial and industrial HVAC systems.

This item is not eligible for free shipping.
