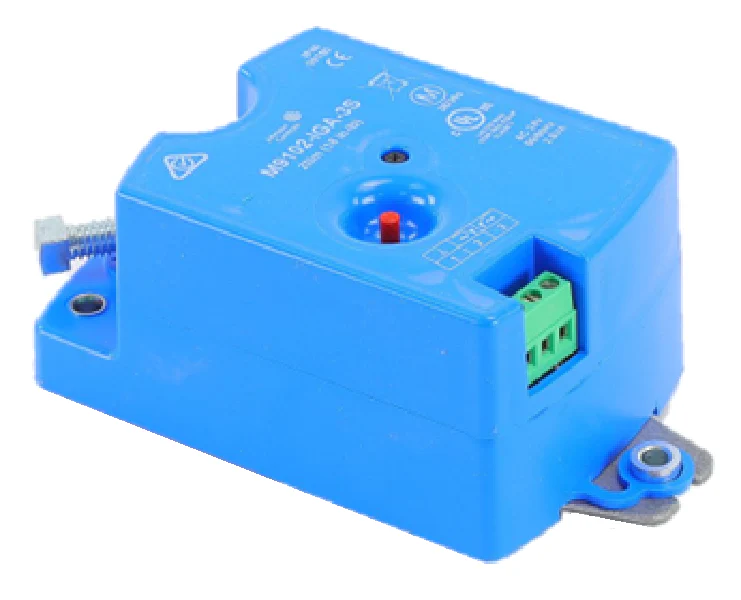

Johnson Controls M9102-IGA-3S Actuator

Johnson Controls M9102-IGA-3S Actuator

$34.16

Original: $113.87

-70%
Johnson Controls M9102-IGA-3S Actuator—

$113.87

$34.16

The Story

24Vac Floating Control or Two Position with Timeout, 18 lb-in Torque, 30 second travel time, Screw Terminals Non-Spring Return Direct Coupled Actuator

Johnson Controls M9102-IGA-3S Actuator – 24Vac Floating Control / Two-Position

Optimize your HVAC system performance with the Johnson Controls M9102-IGA-3S Actuator, a reliable, high-precision solution for controlling dampers and valves. Designed for 24Vac floating control or two-position operation with timeout, this actuator delivers 18 lb-in of torque and completes travel in just 30 seconds, providing fast, accurate control for commercial and residential HVAC applications.

With direct-coupled, non-spring return design and screw terminal connections, the M9102-IGA-3S ensures easy installation and secure operation. Built to last, it features a synchronous drive, magnetic clutch, and manual gear release, achieving a 100,000 cycle rating for long-term reliability. Its compact design and low-noise operation make it ideal for confined spaces without disrupting the environment.

Key Features & Benefits

  • Fast Travel: 30-second travel time for precise control

  • Quiet Operation: 35 dBA maximum audible noise at 1 meter

  • Durable Design: Rated for 100,000 cycles

  • Direct Coupled Mounting: Single-screw coupler for secure installation

  • Advanced Features: Synchronous drive, magnetic clutch, manual gear release

  • Compact Size: Small, lightweight design fits tight spaces

  • Electrical Connection: M3 screw terminals for reliable wiring

Technical Specifications

  • Brand: Johnson Controls

  • Model: M9102-IGA-3S

  • Type: Non-spring return, direct-coupled actuator

  • Torque: 18 lb-in

  • Travel Time: 30 seconds

  • Control Type: 24Vac floating control or two-position with timeout

  • Operating Conditions: -4°F to 125°F (-20°C to 52°C)

  • Noise Level: 35 dBA max at 1 meter

Engineered for precision, durability, and ease of installation, the Johnson Controls M9102-IGA-3S Actuator is an essential component for maintaining efficient and reliable HVAC system performance.
