The Story

FlameSensModule UV/UVSelfCheck

Fireye MBPF-100S Burner Control - FlameSensModule UV/UV SelfCheck

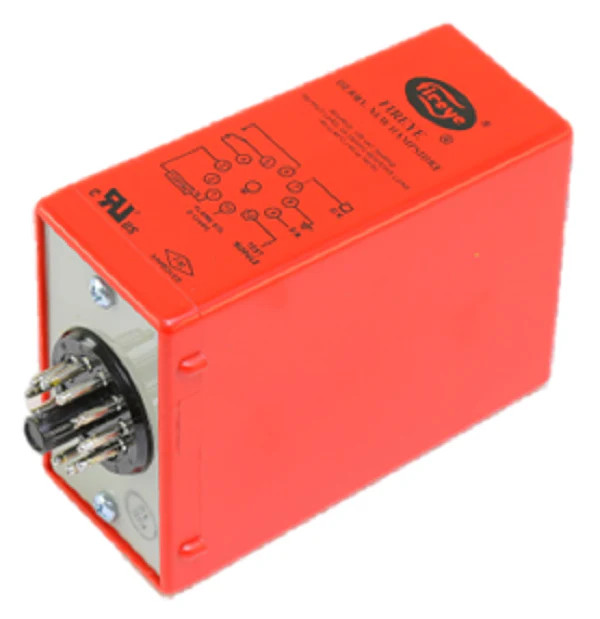

The Fireye MBPF-100S Burner Control is a high-quality flame sensing module designed for reliable flame detection in burner management systems. Part of the PF Series, the MBPF-100S, along with the MB-600PF, MBPF-200S, and MBPF-202S modules, provides essential visual and electrical output signals indicating the presence of flame within a combustion chamber. This control module utilizes Fireye's optical ultraviolet (UV) scanners and/or flame rods to sense flame presence, offering flexibility and precision in combustion monitoring.

Key Features:

  • Flame Detection: Supports UV detection, flame rod detection, or both for comprehensive flame monitoring.

  • Visual and Relay Output: Offers a Flame ON LED and User-Controlled Flame Fail LED, ensuring clear and immediate indication of flame presence or failure.

  • Analog Output Test Points: Provides direct reading of the flame signal for troubleshooting and system calibration.

  • Self-Contained Operation: Available in multiple power options:

    • 120 VAC, 50/60 Hz: For MBPF-100S and MB-600PF models.

    • 220 VAC, 50/60 Hz: For MBPF-200S and MBPF-202S models.

  • Multiple Mounting Options: Can be mounted on panel surfaces or DIN rails for flexible installation.

  • Remote Testing: Features remote testing of contacts for easier maintenance and monitoring.

  • Self-Check Scanner: Available on the MBPF-100S and MB-600PF for automated performance checks.

Product Highlights:

  • UL Recognized & FM Approved: MBPF-100S and MB-600PF are UL recognized, and MBPF-200S and MBPF-202S are FM approved for enhanced reliability.

  • Advanced Flame Sensing Technology: Integrates UV and flame rod sensors to ensure accurate and continuous flame detection.

  • Comprehensive Burner Control: Ideal for use in burner management systems to enhance safety and optimize combustion processes.

  • Safety & Compliance: Meets various safety standards and is suitable for use in industrial burner systems.

Applications:

  • Suitable for use in combustion chambers, industrial burners, and burner management systems.

  • Ensures reliable flame monitoring for both commercial and industrial heating systems.

Important Notes:

  • When using Fireye MBPF modules, additional functions (such as flame safeguard control, safe start check, valve closure, and interlocks) must be provided separately to meet local regulations.

  • Warranty Notice: The Fireye warranty covers only Fireye products, not any other equipment or systems into which they are integrated.

For more information, visit Fireye's website or contact your local distributor.
