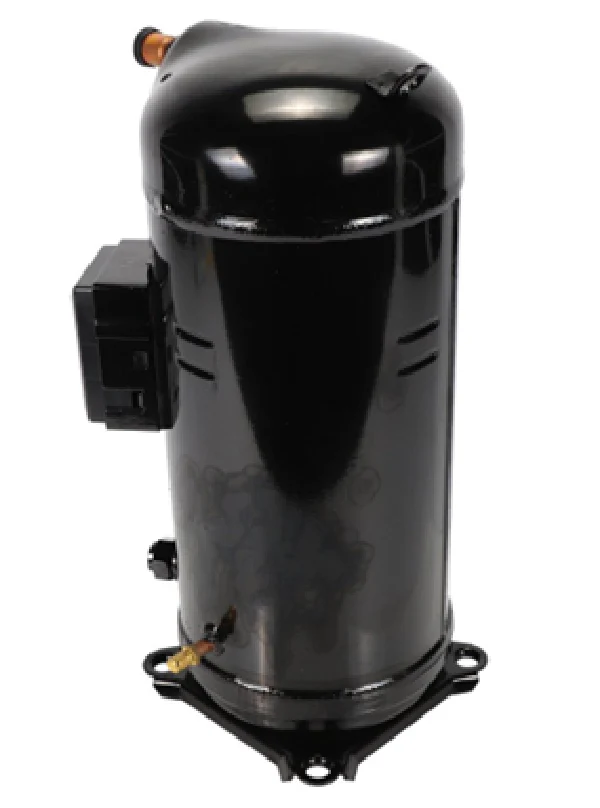

Copeland ZP154KCE-TFD-855 Compressor

460v3ph 190,000btu R-410A Comp

ZP154KCE-TFD-855 is the cross of ZP154KCE-TFD-455

Warranty policy for this compressor is 1 year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.

Copeland ZP154KCE-TFD-855 Scroll Compressor – 460V 3PH, 154,000 BTU, R-410A

The Copeland ZP154KCE-TFD-855 Compressor is a high-efficiency, heavy-duty scroll compressor engineered for commercial air conditioning and heat pump applications. Designed for R-410A refrigerant and powered by 460V, 3-phase, this compressor delivers approximately 154,000–155,000 BTU (13 HP) of dependable cooling performance.

Built with advanced scroll technology, inherent motor protection, and a centrifugal oil pump, this unit provides quiet operation, reduced vibration, and long service life in demanding HVAC environments.

---

🔧 Model Code Breakdown – ZP154KCE-TFD-855

• Z = Scroll Compressor

• P = A/C Duty – R410A

• 154K = 154,000 BTU Capacity

• C = Model Series

• E = POE Oil (AK/DA or 3MA)

• T = 3 Phase

• F = Internal Inherent Protection (use with contactor)

• D = 380/420-3-50 / 460-3-60

• 855 = Bill of Material Product Variation

---

📊 Key Specifications

• Brand: Copeland

• Part Number: ZP154KCE-TFD-855

• Compressor Type: Scroll, Hermetic

• Application: Air Conditioning (A/C) & Heat Pump (HP)

• Refrigerant: R-410A

• Compressor Capacity: 154,000–155,000 BTU

• Horsepower: 13 HP

• Rated Voltage (60Hz): 460V

• Line Voltage (60Hz): 480V

• Phase: 3-Phase

• Frequency: 50Hz / 60Hz

• EER: 11.0+

• Max RLA: 25

• LRA: 150

• Max Watts: 14,000

---

🔩 Connection & Physical Details

• Suction Connection: Horizontal – 1-3/8" ID

• Discharge Connection: Horizontal – 7/8" ID

• Refrigerant Oil Type: Polyol Ester (POE)

• Oil Recharge: 6.625 Pints

---

✅ Standard Features & Benefits

• High-efficiency performance (EER 11.0+)

• Low noise and vibration operation

• Inherent internal motor protection

• Centrifugal oil pump for improved lubrication

• Optimized for R-410A refrigerant systems

• Designed for commercial A/C and heat pump duty

---

💡 Why Choose Copeland Scroll Technology?

Copeland scroll compressors are recognized for durability, energy efficiency, and smooth performance. With fewer moving parts than traditional reciprocating compressors, scroll technology reduces wear, lowers maintenance requirements, and extends system lifespan.

The Copeland ZP154KCE-TFD-855 460V 3-Phase Scroll Compressor is an ideal OEM replacement for commercial HVAC systems requiring reliable, high-capacity R-410A performance.
