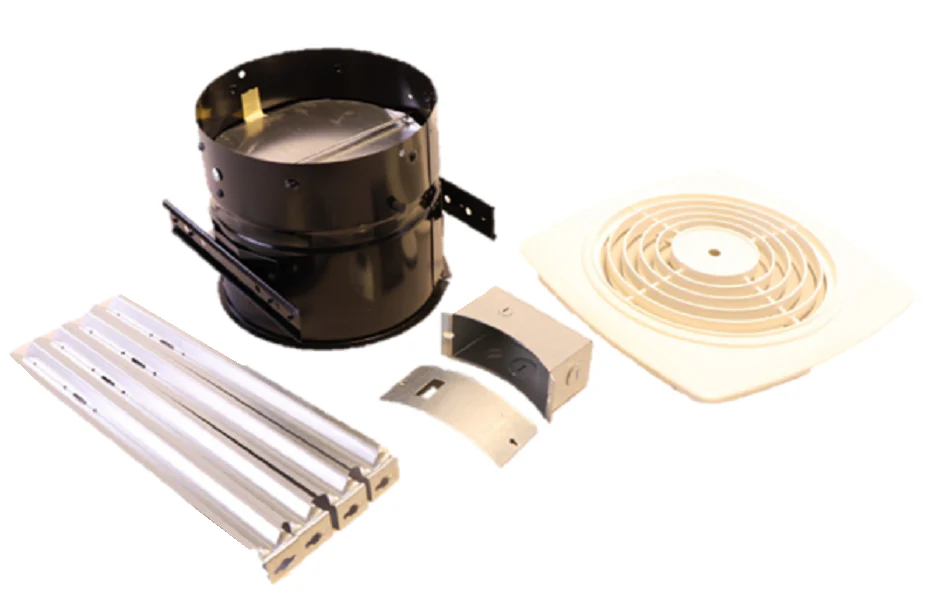

BROAN-NuTone 505 Fan

This item is not eligible for free shipping.

180 CFM 8" FAN 6.5 Sones

BROAN-NuTone 505 Bathroom Exhaust Fan – 180 CFM, 8" Duct, 6.5 Sones, 120V Ceiling Discharge Fan

The BROAN-NuTone 505 Exhaust Fan is a powerful and dependable ceiling-mounted ventilation fan designed to efficiently remove moisture, odors, and stale air from bathrooms, utility rooms, and other indoor spaces. With a strong 180 CFM airflow capacity, this fan is ideal for large bathrooms or areas requiring high ventilation performance.

Built with durability and convenience in mind, the Broan-NuTone 505 fan features a rugged steel housing with electrically bonded epoxy paint for long-lasting protection against corrosion. Its permanently lubricated and thermally protected motor ensures reliable operation and reduced maintenance over time.

The fan is engineered for quick and easy installation between ceiling joists and includes a twist-lock motor assembly that simplifies servicing or motor replacement. A built-in backdraft damper helps prevent outside air from entering through the ductwork, improving overall efficiency and comfort.

The fan’s modern white polymer grille complements contemporary interiors and can also be painted to match existing décor. With fiberglass reinforced fan blades and a 1975 RPM motor, the unit delivers strong airflow performance while maintaining dependable operation.

Designed to connect to an 8-inch round duct, the BROAN-NuTone 505 discharge fan is a trusted solution for homeowners, contractors, and HVAC professionals looking for reliable high-capacity bathroom ventilation.

---

Key Features

• High airflow capacity: 180 CFM for effective ventilation

• Designed for bathrooms, utility rooms, and large spaces

• 6.5 sones sound level for powerful ventilation performance

• Built-in backdraft damper prevents outside air infiltration

• Permanently lubricated motor for long-lasting reliability

• Thermally protected motor for safety and durability

• Twist-lock motor assembly for quick installation and servicing

• Fiberglass reinforced fan blades for enhanced strength

• Modern white polymer grille – paintable to match décor

• Fits 8-inch round duct for efficient air discharge

• Heavy-duty steel housing with epoxy coating for corrosion resistance

---

Product Specifications

• Brand: BROAN-NuTone

• Model: 505

• Product Type: Ceiling Discharge Exhaust Fan

• Voltage: 120 V

• Current Rating: 1.5 A

• Airflow Capacity: 180 CFM

• Sound Level: 6.5 Sones

• Speed: 1975 RPM

• Duct Size: 8 in round

• Grille Size: 11-1/2 in L x 11-1/2 in W

• Housing Width: 8-1/4 in round

• Material: Polymer grille, steel housing

• Color: White

---

Ideal Applications

• Bathroom exhaust ventilation

• Laundry rooms and utility spaces

• Large residential bathrooms

• Remodeling or replacement ventilation projects

• General home ventilation systems

---

The BROAN-NuTone 505 180 CFM Exhaust Fan delivers high airflow performance, durable construction, and easy installation, making it a reliable ventilation solution for maintaining cleaner, fresher indoor air in residential spaces.
