IGNITION MODULE

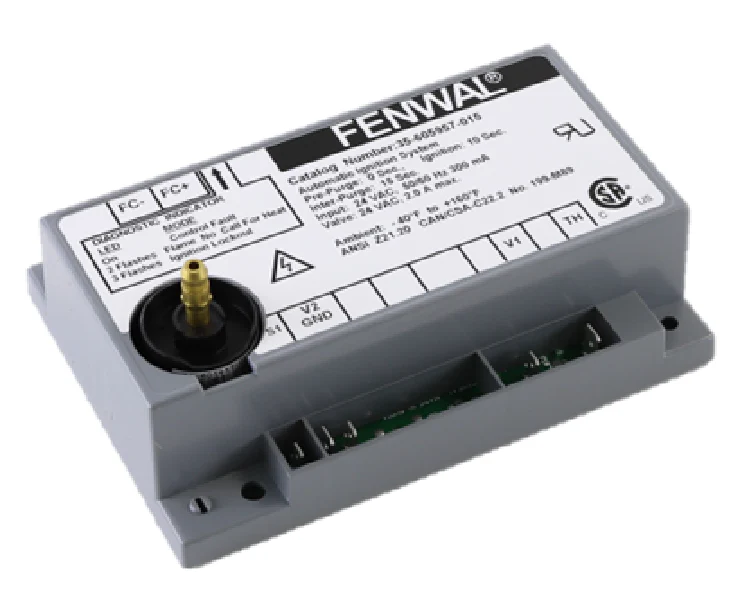

Fenwal 35-605957-015 Ignition Module – Advanced Direct Spark Ignition Control for Gas Appliances

The Fenwal 35-605957-015 Ignition Module is an advanced 24 VAC microprocessor-based Direct Spark Ignition (DSI) control designed for reliable and efficient operation in a wide range of heating applications. Engineered with precision, this ignition module continuously monitors, analyzes, and controls the operation of gas burners, ensuring safe and optimal performance in gas furnaces, boilers, water heaters, and more.

Key Features:

24 VAC Microprocessor-Based DSI Control: Ensures consistent and accurate control of gas burners for efficient ignition.
Pressure Switch Monitoring: Monitors system pressure for safe operation and reliable ignition control.
System Diagnostic LED: Provides real-time diagnostics to quickly identify and resolve issues, improving service efficiency.
Automatic Reset After Lockout: Automatically resets after 1 hour of lockout to ensure minimal downtime and prevent recurring ignition problems.
Custom Prepurge and Interpurge Timings: Customizable purge times for optimal combustion and safety.
Multiple Ignition Attempts: Allows multiple ignition tries to improve the likelihood of successful ignition, reducing failure risk.
Flame Sensing Options: Remote or local flame sensing with flame sense test pins for easy troubleshooting.
Alarm Output: Normally closed contact for alarm output when needed.

Applications:

Gas Furnaces
Boilers
Water Heaters
Commercial Cooking Equipment
Other Gas-Fueled Appliances

Specifications:

Product Type: Ignition Control
Ignition Type: Direct Spark Ignition (DSI)
Voltage: 24V
Temperature Range: -40°F to 176°F
Flame Sense: 0.7 minimum
Fuel Types: Natural Gas, Propane

Why Choose the Fenwal 35-605957-015 Ignition Module? The Fenwal 35-605957-015 Ignition Module offers advanced control features, such as LED diagnostics, multiple ignition tries, and flame sensing options, making it the perfect solution for reliable, efficient, and safe ignition control in a variety of gas-powered appliances. Ideal for use in furnaces, boilers, water heaters, and commercial cooking equipment, this ignition module helps maintain peak performance and reduces downtime.

FENWAL

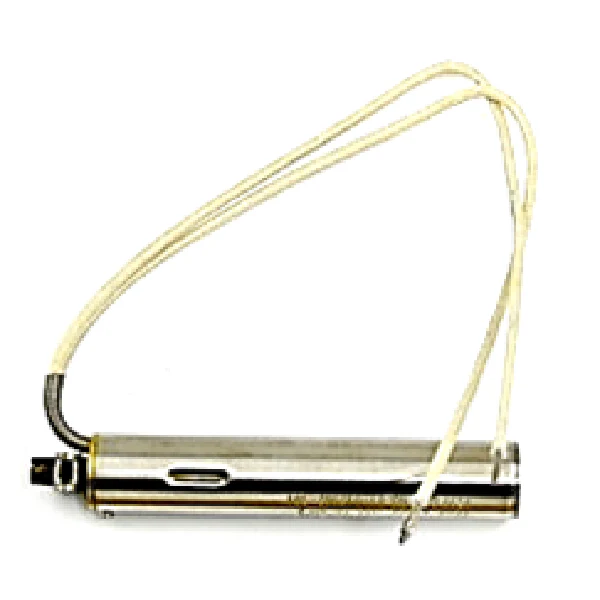

Fenwal 01-017002-301 Control

Fenwal 35-605600-003 Control

Fenwal 12-H28021-005-08 Detect

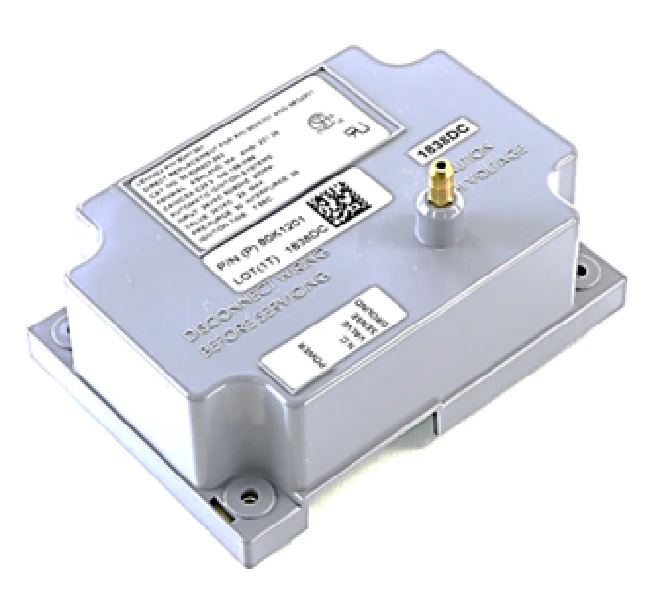

Fenwal 35-605903-223 Control

Fenwal 35-605957-015 Ignition Module

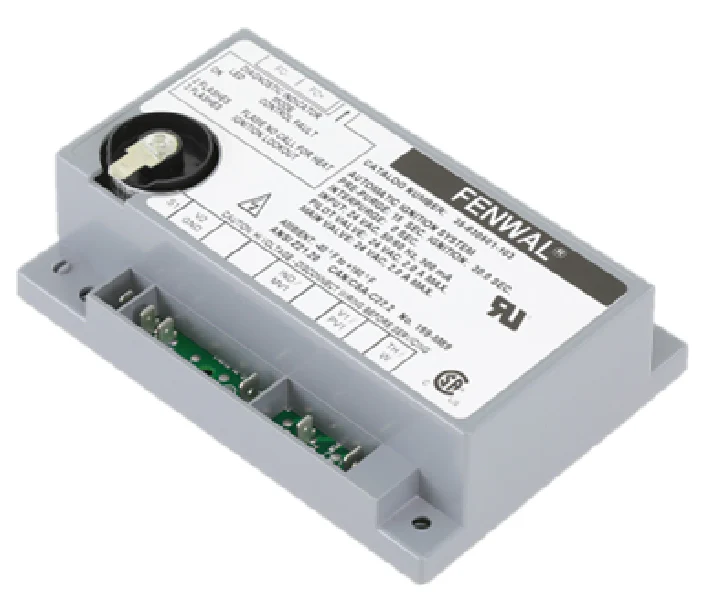

Fenwal 35-630501-103 Module
